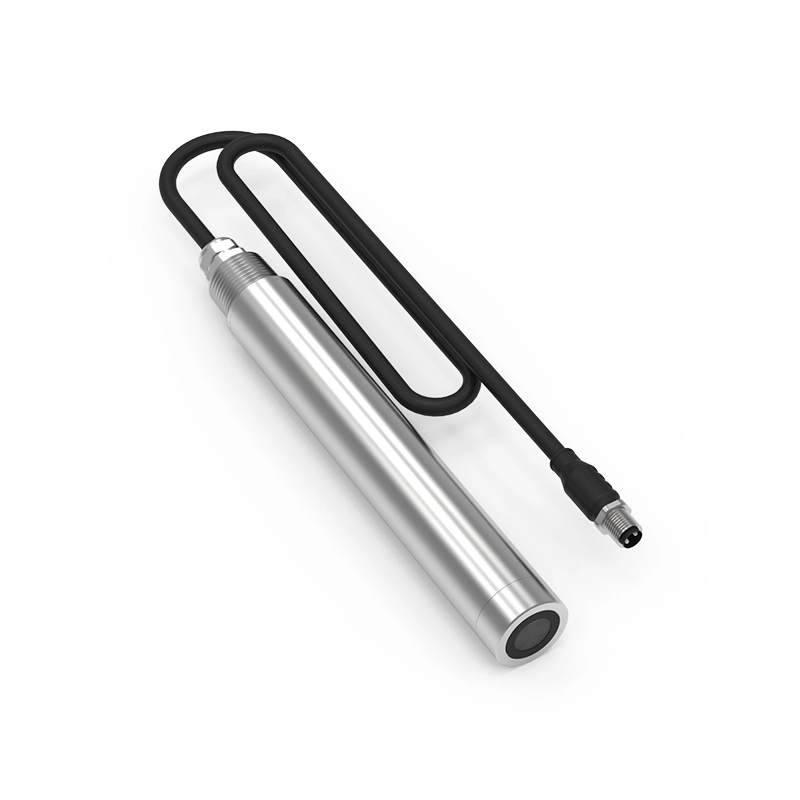

BH-485-BAG Online Blue-green Algae Sensor
BH-485-BAG Online Blue-green Algae Sensor
The BOQU digital online blue-green algae sensor utilizes the characteristic that the cyanobacteria has an absorption peak and an emission peak in the spectrum, and emits a specific wavelength of monochromatic light to illuminate the water, and the cyanobacteria in the water absorbs the energy of the monochromatic light, releasing a single wavelength single. In shades of light, the light intensity emitted by cyanobacteria is directly proportional to the amount of cyanobacteria in the water.
Typical Application:
Pipe inlet of drinking water plant,water source site,aquaculture,surface water,
Landscape water,sea water.
TECHNICAL INDEXES
| Product | BH-485-BAG Online Blue-green Algae Sensor |
| Measuring range | 100 to 2,000,000 cells/mL |
Accuracy | Less than ±5% |
| Repeatability | ±3% |
Inlet pressure | ≤0.4Mpa |
Working temperature | 0~45℃ |
Communication | RS485 Modbus RTU |
Calibration | Deviation calibration,Slope calibration |
Sensor material | SUS316L (normal type) Titanium Alloy(sea water type) |
The power supply | DC12V |
Dimension of the sensor | 37mm*220mm(Diameter*length) |
Protection | IP68 |
Cable length | Standard 10m cable, can extended to 100m |
Using condition | Turbidity less 50NTU,it’s recommended to measure multi-points if The distribution of blue-green algae in water is very uneven |
MAIN FEATURES
