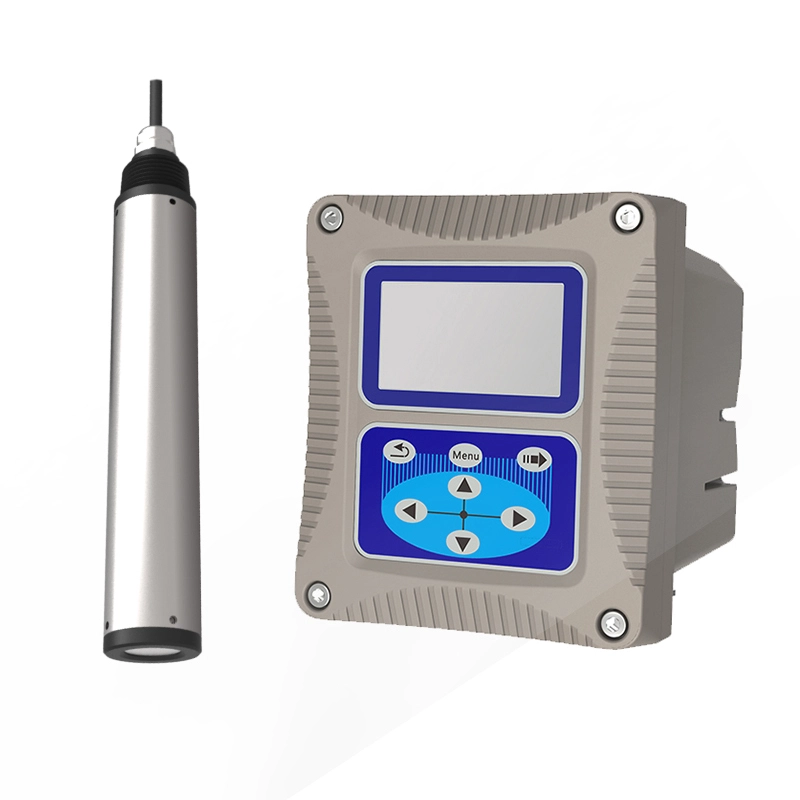

CHG-18 Online Chlorophyll Analyzer
CHG-18 ONLINE CHLOROPHYII ANALYZER
Measuring Principle
The chlorophyll sensor utilizes the characteristic that chlorophyll A has an absorption peak and an emission peak in the spectrum, and emits a specific wavelength of monochromatic light to illuminate into the water, and chlorophyll A in the water absorbs the energy of the monochromatic light, releasing a single wavelength single. The color of light, the intensity of chlorophyll A emission is proportional to the content of chlorophyll A in water.
Application
Pipe inlet of drinking water plant,water source site,aquaculture,surface water,Landscape water,sea water.
TECHNICAL PARAMETERS
| Product | CHG-18 Online Chlorophyll Analyzer |
Measuring range | Chlorophyll , 0-500 ug/L |
Accuracy | Accuracy: ±5% |
| Pressure range | ≤0.4Mpa |
| Sensor material | Body:SUS316L(freshwater),Titanium alloy(sea water) |
Communication | RS485 Modbus RTU |
Power | AC:85-500VAC (50/60HZ) ;DC:9~36VDC |
| Output | 2 ways of 4-20mA |
| Communication | RS485 Modbus RTU |
| Relays | 3 ways of relay |
| Working temperature | -15 to 60℃ |
Protection | Blue-green Algaetransmitter IP65, Blue-green Algae Sensor IP68 |
| Length of Cable | Standard 10-meter long cable, which can be extended to 100 meters |
MAIN FEATURES
