    ZDYG-2087-01 RS485

    ONLINE SUSPENDED SOLID SENSOR

    The Digital RS485 suspended solid sensor is based on the infrared absorption scattered light method and combined with the application of ISO7027 method, can guarantee the continuous and accurate detection of suspended solids and sludge concentration. Based on ISO7027, infrared double scattering light technology will not be affected by chroma for the measurement of suspended solids and sludge concentration value. According to the usage environment, self-cleaning function can be equipped with. It assures the stability of data and reliability of performance; with the built-in self-diagnosis function, it can make sure the accurate data be delivered; besides, the installation and calibration is quite simple. The product is widely used in sewage plant, water plant, water station, surface water, farming, industry and other fields.

    TECHNICAL INDEXES

    ProductZDYG-2085-01 Online Digital Suspended Solid Sensor

    Measuring range

    0.01-20000 mg/L,0.01-45000 mg/L ,0.01-120000 mg/L

    Inlet pressure

    ≤0.4Mpa

    Current speed

    5~60℃

    Communication

    RS485 Modbus RTU

    Calibration

    Sample calibration, slope calibration

    Sensor main material

    Body: SUS316L + PVC (normal type)

    SUS316L + PVC (sea water type)

    O-ring: Fluorine rubber

    Cable: PVC

    Resolution

    Less than ± 5% of the measured value (depending on sludge homogeneity)

    Relative humidity

    <70%RH

    The power supply

    DC12V

    Dimension of the sensor

    Diameter 60mm* length 256mm

    Protection

    IP68/NEMA6P

    Cable length

    Standard 10m cable, can extended to 100m

    MAIN FEATURES

    Digital RS485 Suspended Solid Sensor ZDYG-2087-01 5

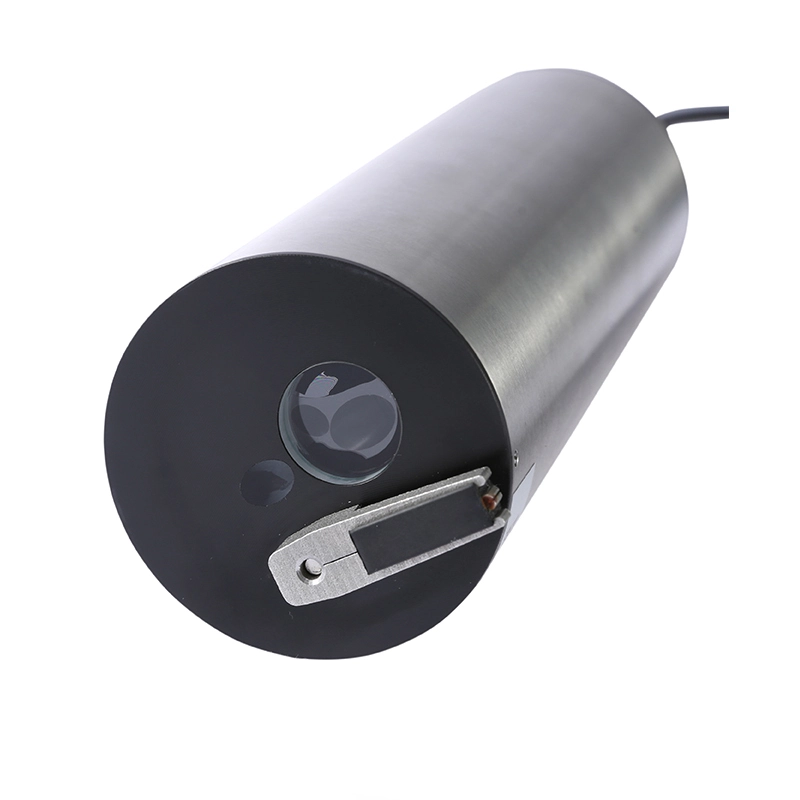

    Free maintenance ,it's with automatic cleaning brush,user can set cleaning interval time by self.
    Digital RS485 Suspended Solid Sensor ZDYG-2087-01 6
    The application of ISO7027 standard methods (infrared light scattering technique) can eliminate the influence of the sample color
    Digital RS485 Suspended Solid Sensor ZDYG-2087-01 7
    Equipped with self diagnosis function, to ensure accurate data.
    Digital RS485 Suspended Solid Sensor ZDYG-2087-01 8
    The digital suspended solid sensor adopts double beam infrared scattering spectrophotometer detection technology, with good repeat-ability and stability
    Digital RS485 Suspended Solid Sensor ZDYG-2087-01 9
    The digital suspended solid sensor, with strong anti-interference ability and long transmission.
    Digital RS485 Suspended Solid Sensor ZDYG-2087-01 10
    Standard digital signal output can be achieved in the absence of controller and other equipment integration and networking.
