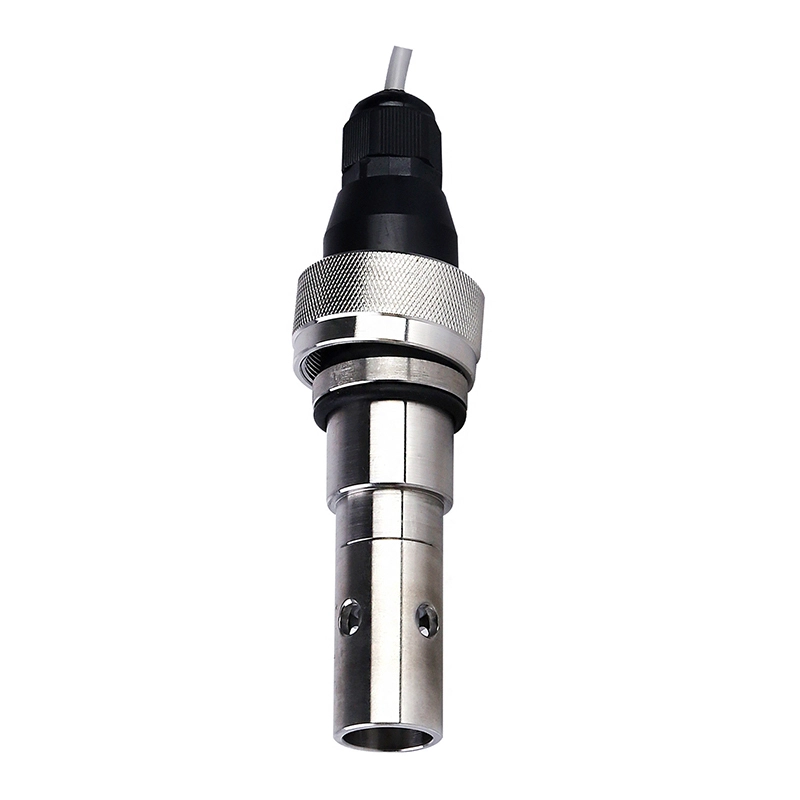

Industrial Conductivity Electrode DDG-0.01(0.1)
DDG-0.01(0.1)
INDUSTRIAL ONLINE
CONDUCTIVITY SENSOR
The industrial conductivity electrodes are specially used for the measurement of conductivity value of ultra-pure water,pure water. It is especially suitable for conductivity measurement in the thermal power plant and the water treatment industry. It is featured by the double-cylinder structure and the titanium alloy material, which can be naturally oxidized to form the chemical passivation. Its anti-infiltration conductive surface is resistant to all kinds of liquid except fluoride acid. The temperature compensation components are: NTC2.252K, 2K, 10K, 20K, 30K, ptl00, ptl000, etc. which are specified by the user. K=10.0 or K=30 electrode adopts a large area of platinum structure, which is resistant to strong acid and alkaline and has strong anti-pollution capacity; it is mainly used for on-line measurement of the conductivity value in the special industries, such as the sewage treatment industry and the seawater purification industry.
TECHNICAL SPECIFICATIONS
Model | DDG-0.01(0.1) Industrial Conductivity Electrode |
Constant of electrode | 0.01,0.1 |
Measuring range | 0-20uS/cm,0-200uS/cm |
Pressure | SS316L or Titanium Alloy |
| Working pressure | 0.6MPa |
| Connection | Pipe,hoses,flange pipe etc diamter:φ6,φ8,φ14, etc |
| Application | power plant, water treatment industry |
