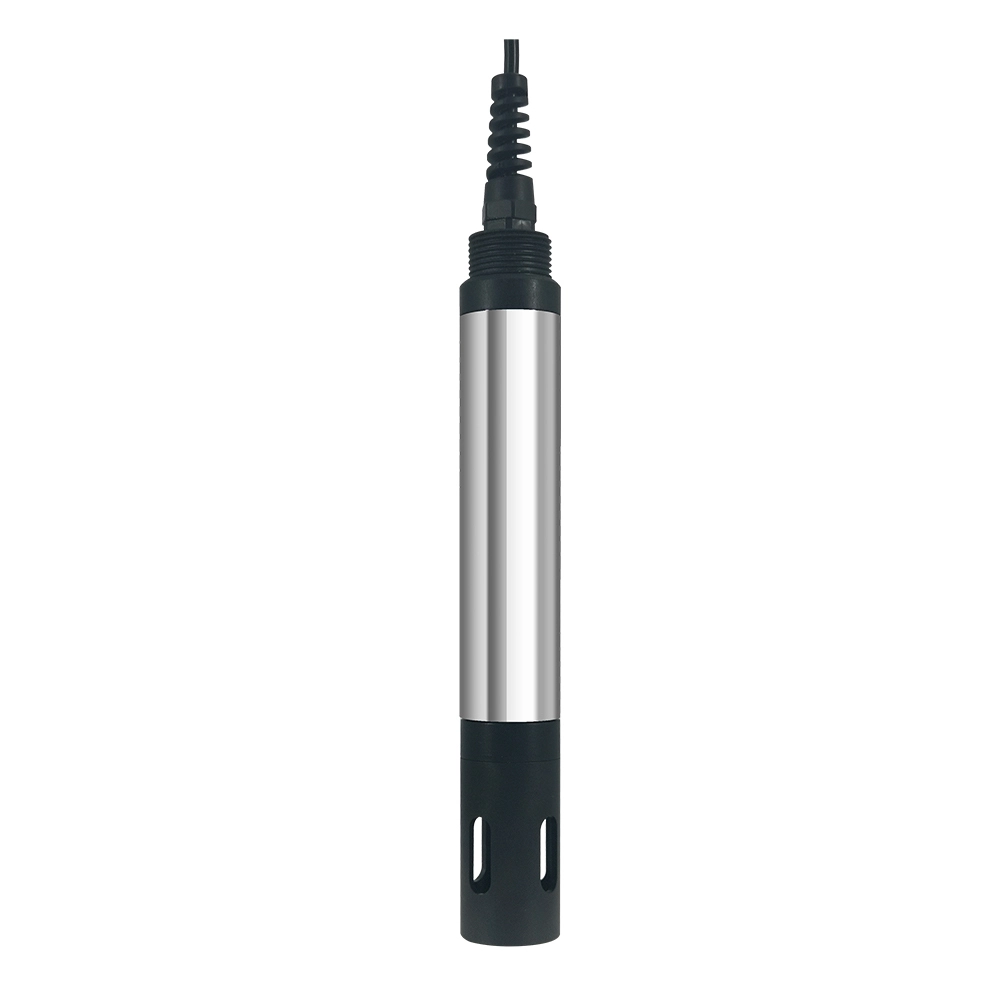

IOT-485-pH Digital Online pH Sensor
IOT-485-pH
Digital Online pH Sensor
IOT-485-pH digital online pH sensor independently developed and produced by BOQU Instrument. The housing of pH sensor is SS316 for harsh application, easy to install, and it has high pH measurement accuracy, sensitive response, and can work stably for a long time. Built-in temperature probe, instant temperature compensation. Strong anti-interference ability, the longest output cable can reach 500 meters. It can be set and calibrated remotely, and the operation is simple. It can be widely used in monitoring the pH of thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food, fermentation, brewing and tap water and other fields.
TECHNICAL PARAMETERS
| Model | IOT-485-pH Digital Online pH Sensor |
| pH Range | 0~14pH |
Temperature range | 0~65℃ |
Accuracy | ±0.1pH ±0.5℃ |
Power | 9~36V DC |
| Communication | Standard RS485 |
| Housing material | SS316 |
Process connection | Upper G1” |
Protection | IP68 |
| Cable length | standard 5 meters cable (it can be extend) |
MAIN FEATURES
- Smart and with standard RS485 Modbus
- Independent chip, anti-interference, strong stability.
SS316 material for pH Sensor housing
Improved pH process control and measurement confidence with reduced operational expenditure and process downtime.
- Maximum transmission distance 500 meters.
High-quality pH combination sensor with temperature measurement
