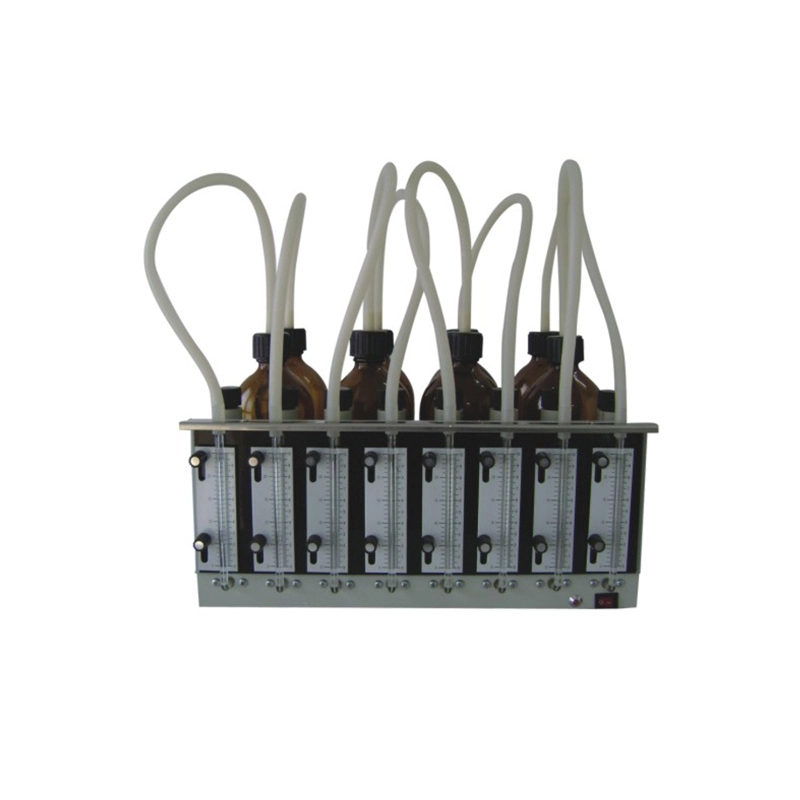

Laboratory BOD5 Analyzer CY-5
CY-5 LABORATORY BOD5 ANALYZER
Pour water sample into a culture bottle with sodium hydroxide in seal cup on bottle mouth, then seal the bottle and put in the incubator, keep the temperature at 20℃±1℃ and Continuously stirring for 5 days. Organic matter in the sample will be converted to the oxides of nitrogen, carbon and sulfur because of the biological oxidation. During this process, the only gas (CO2) overflow from the sample then is absorbed by sodium hydroxide. At the same time, oxygen consumption of microorganism results in air pressure difference. The BOD5 value can be calculated through measuring the height of the mercury.
Packing list of laboratory BOD5 analyzer
1 BOD main unit, 10 culture bottles, 10 stirrers, 8 CO2 absorption cups, 1 bottle of mercury, rubber conveyer belt ( big and small each 3 strips), 2 airproof circles, 2 fuses, 1 Power AC-DC converter
TECHNICAL PARAMETERS
Product | CY-5 Laboratory BOD5 Analyzer | |
Measuring range | 0mg/L～1000mg/L(dilute if BOD5 value exceeds) | |
Standard | National standard “GB7488-87” | |
Display | Read the value BOD5 from dividing rule of pressure gauge（mg/L） | |
Sample Quantity | 8 | |
Main unit Dimension | 400mm×270mm×350mm | |
Power Consumption | < 15W | |
Output | 4-20mA,current output load: max. 500Ω | |
Relay | 2 relays, max. 230V, 5A(AC); Min. l l5V, 10A(AC) | |
Power supply | AC 220V ±l0％, 50Hz | |
Dimension | 96x96x110mm | |
Hole size | 92x92mm | |
