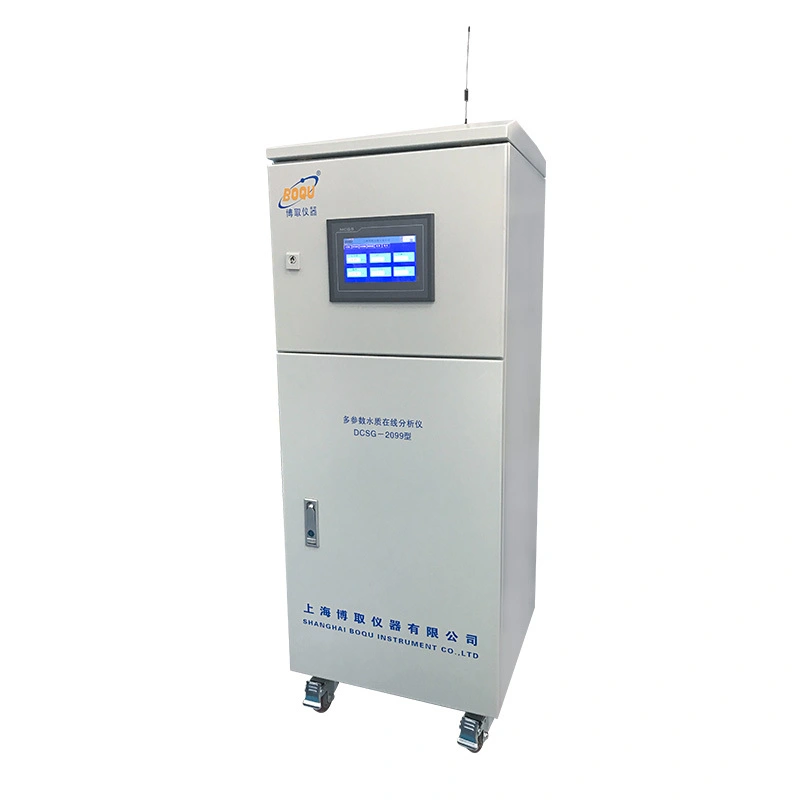

Multi-parameter Water Quality Monitor DCSG-2099
DCSG-2099 MULTI-PARAMETER WATER QUALITY MONITOR
Online Multi-parameters water quality Analyzer integration platform, it can directly integrate a variety of water quality online analysis parameters in a whole machine, in the touch screen panel display focused on and management; the system set on-line water quality analysis, remote data transmission, database and analysis Software, system calibration functions in one, the modernization of water quality data collection and analysis provides a great convenience.
Flexible configuration of the combination, the cabinet inside the sample and analysis of the part can be flexible matching (Note: the specific parameters to the actual ordering parameters prevail): pH, conductivity, temperature, and other conventional parameters, the actual needs of customers should be combined or extended ; Water part of the use of the company's latest application research results - tandem flow analysis device, the water required little, real-time strong, a small water flow through a variety of sensors in accordance with the different technical characteristics and response order , Water samples through the flow of all parameters when the real-time capture, but also to achieve the external large-scale continuous expansion of the unit.
TECHNICAL INDEXES
| Model | DCSG-2099 | |
| Measurement configuration | pH/Conductivity/CL/Turbidity/Temperature | |
| Measuring range | pH | 0-14.00pH |
| DO | 0-20.00mg/L | |
| ORP | -1999—1999mV | |
| Salinity | 0-35ppt | |
| Turbidity | 0-100NTU | |
| Chlorine | 0-5ppm | |
Temperature | 0-150℃(ATC: 30K） | |
| Resolution | pH | 0.01 pH |
| DO | 0.01mg/L | |
| ORP | 1mV | |
| Salinity | 0.01ppt | |
| Turbidity | 0.01NTU | |
| Chlorine | 0.01mg/L | |
Temperature | 0.1℃ | |
Communication protocol | RS485 | |
| Wire less | Local SIM card and APP on mobile | |
| Power supply | AC 220V±10% | |
| Working condition | Temperature:（0-50）℃； | |
| Storage condition | Related humidity: ≤85% RH（without Condensation） | |
| Note | Other parameters can be customized based on requirements. | |
