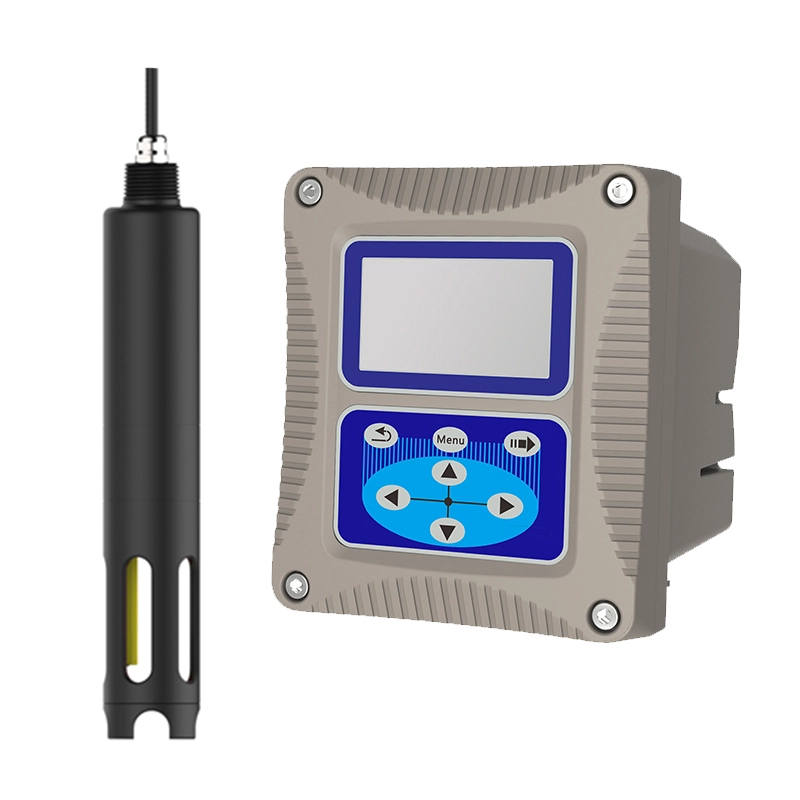

NHNK-1000 Online Ammonia Nitrogen Analyzer
NHNK-1000 ONLINE AMMONIA NITROGEN ANALYZER
BOQU Instrument has new online ammonia nitrogen analyzer,model is NHNK-1000,it's popular used for wastewater treatment plants. Controlling discharge values for ammonia nitrogen by a simple continuous ammonia nitrogen sensor measurement,it's impossible in the past.BOQU Instrument provides this basis for a specific ammonia nitrogen parameter process control.During calibration, the NHNK-1000 Online ammonia nitrogen analyzer can be adjusted to a reference value which was photometrically determined in the lab for the specific medium to be analysed. In this way, the matrix effects of the wastewater are recorded and automatically taken into account for all readings. The biggest result is that calibration against standards is no longer required. The benefits of NHNK-1000 online ammonia nitrogen analyzer include :
1) Low initial investment
2) Operational costs reduced by up to 50%
3)Improved discharge values
4) Online help integrated in the ammonia nitrogen sensor
TECHNICAL PARAMETERS
| Product | NHNK-1000 Online Ammonia Nitrogen Analyzer |
| Power | AC:AC220V, 50HZ, 5W DC:DC24V |
Measuring range | NH4N：0.1-1000 mg/L K+：0.5-1000 mg/L （Optional） pH：5-10 |
Accuracy | NH4N：±5 % of the measured value or ± 0.2 mg/L, take the greater one. K+：±5 % of the measured value or ±0.2 mg/L （Optional） Temperature：±0.1℃ pH：±0.1 pH |
| Working temperature | 0-45 ℃ |
Communication | RS485 Modbus RTU |
Resolution | NH4N：0.01 mg/l K+：0.01 mg/l（Optional） Temperature：0.1℃ pH：0.01 |
Size | Ammonia nitrogen transmitter:138*138(hole size) Ammonia nitrogen sensor :55mm×340mm（Diameter*Length） |
Output | 4-20mA load <750Ω (optional) |
Protection | Ammonia nitrogen transmitter:IP65, Ammonia nitrogen Sensor: IP68 |
| Length of Cable | Standard 10-meter long cable, which can be extended to 100 meters |
MAIN FEATURES
