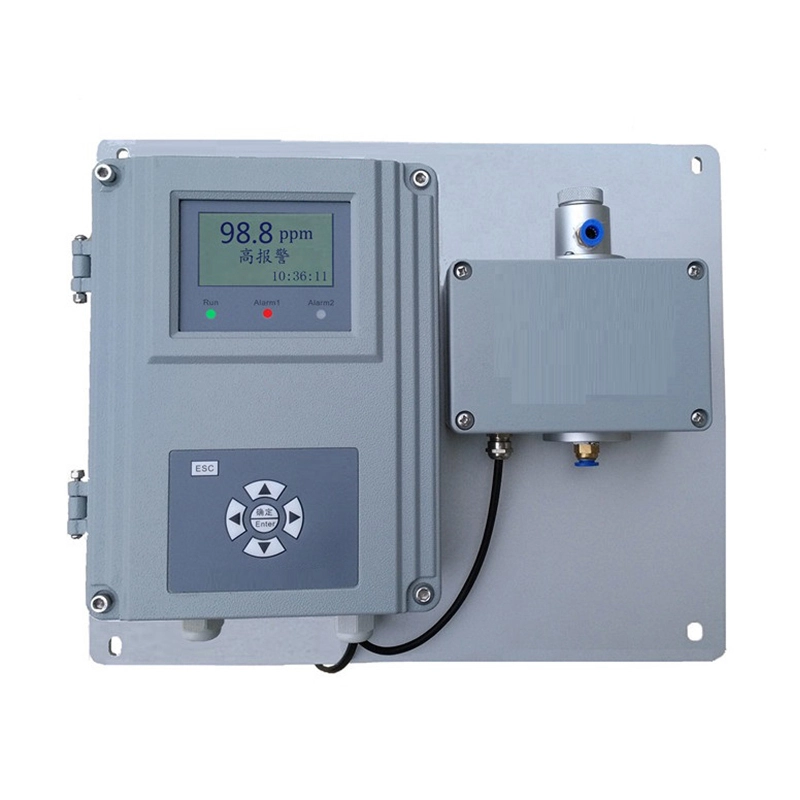

OIW-300P Online Oil-in-Water Analyzer
OIW-300P ONLINE OIL-IN-WATER ANALYZER
Application of Online Oil-in-Water Analyzer:
Bilge water discharge monitoring, Oil in Waste water, Oil in produced water, Oil in Cooling Water and Holding Ponds, Fuels in Storm Runoff Water, Phenol in Water, Hydroelectric dam sumps, Drain systems for fuel oil storage tank area, Ground water recovery sites, Boiler condensate and power plant cooling water reclaiming systems, Intake monitoring for Desalination plants, Water discharge in municipal water treatment systems, Engine cooling water, Effluent monitoring, Metal finishing, Mining etc.
With high sensitivity and reliability, our Oil-in-Water Analyzer offers precise data for environmental monitoring, industrial processes, and compliance with regulatory requirements.
TECHNICAL INDEXES
| Product | OIW-300P Online Oil-in-Water Analyzer |
Color range | 0.1-299.9ppm |
Resolution | <±2% |
Accuracy | < ± 3% |
Storage time | >3 years((optional)) |
Recording interval | 0-30 Minutes can be setup,Default 10 minutes |
Display mode | RS485 Modbus RTU |
Working temperature | 0~55℃ |
Analog output | 4~20mA output |
Relay output | Four SPDT,230VAC,5A |
Fault alarm | two Acousto-optic alarm, Alarm value and time can be set |
Power Supply | AC,100~230V,50/60Hz or 24VDC ;power comsumption: 50W |
| Sample flow rate | 0mL~3000mL/min Ensure that the flow rate is no bubbles It will more accuracy in low flow rate for low range measuring |
| Inflow pipeline | 1/4" NPT,(Provide external interface) |
| Outflow pipeline | 1/4" NPT,(Provide external interface) |
| Communication | RS485 Modbus RTU |
| Dimension | 40×33×10cm |
TECHNICAL FEATURES
Subtitle Description
Real-time process control by oil-in-water analysis.
Easy to operate and maintain.
High Precision, Reliability, Drift Free.
Data storage for 3 years.
Wide range (0.0~299.9ppm) suitable for different applications.
Standard RS485 Modbus RTU Protocol, Direct Connected with PLC, HMI, Eliminate I/O Module Cost.
