Online pH/ORP Meter PHG-2091A

Model:

PHG-2091A

Mob/WhatsApp:

OEM, ODM, Customized

Place of Origin:

China

DeliveryTime:

7-10 working days

MOQ:

1 PCS

Inquiry

Write a Review

PHG-2091A

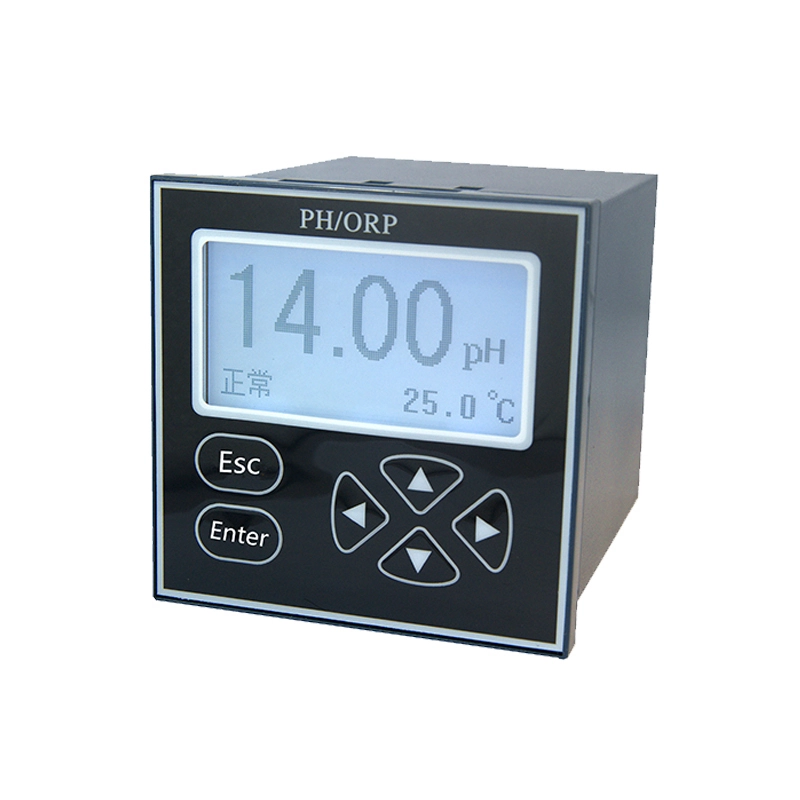

ONLINE PH/ORP METER

Online pH/ORP meter (hereinafter referred to as instrument) is a water quality online monitor with microprocessor. The instrument configuration of different types, different constant ORP electrode and the different types of pH electrode for the water conductivity of solution, pH value and temperature value of continuous monitoring and control. Widely used in power plants, petrochemical, metallurgy, paper environmental protection, water treatment, electronics and other fields such as light industry. The power plant cooling water, supply water, saturated water, condensed water and boiler water, ion exchange, reverse osmosis EDL, seawater distillation water equipment, water and water quality monitoring and control.

The instrument adopts LCD liquid crystal display, intelligent English menu operation, with current or voltage output, free setting of measurement range, high and low limit alarm prompt and two sets of relay control switches, adjustable hysteresis range, automatic or manual temperature compensation.

TECHNICAL PARAMETERS

Product	pHG-2091A Industrial Online pH/ORP Meter
Measuring range	PH: 0.01～14.00pH, ORP:-1999~+1999mV Temperature: 0～100℃
Resolution	PH: 0.01pH ORP: 0.1mV Temp: 0.1℃
Accuracy	ORP: ±1.0%F·S±1 unit, Temp: ±0.3℃ pH: ±0.05pH
Stability	±0.1%F·S±1 unit /24h
Power	220VAC or 24VDC
Temperature compensation	0~99℃(10K,PT1000,PT100,2.252)
Output	4～20mA(up load＜750Ω)
Relay	2 relays, 4A 250VAC, 4A 30VDC
Power supply	85～265VAC±10%,50±1Hz, ≤3W 9～36VDC, ≤3W
Dimension	96×96×130mm
Hole size	92x92mm

MAIN FEATURES

Intelligent: using single chip microprocessor to complete the value of the conductivity of PH, temperature measurement and compensation;

The man-machine dialogue menu operation structure, users follow the prompts on the screen can operate;

The multi screen display and display parameters: pH/ORP value, temperature and working condition;

The measuring range and limit alarm, set free, overrun alarm limit;The two group of relay control, hysteresis control range is adjustable;

The software to set the output mode: software 0 ~ 20mA or 4 ~ 20mA, 20 ~ 4mA output;and RS485 modbus

The password and service guide or self: the user can modify the password, to avoid irrelevant personnel into the misoperation; provide technical support and customer service service contact method for the user.
