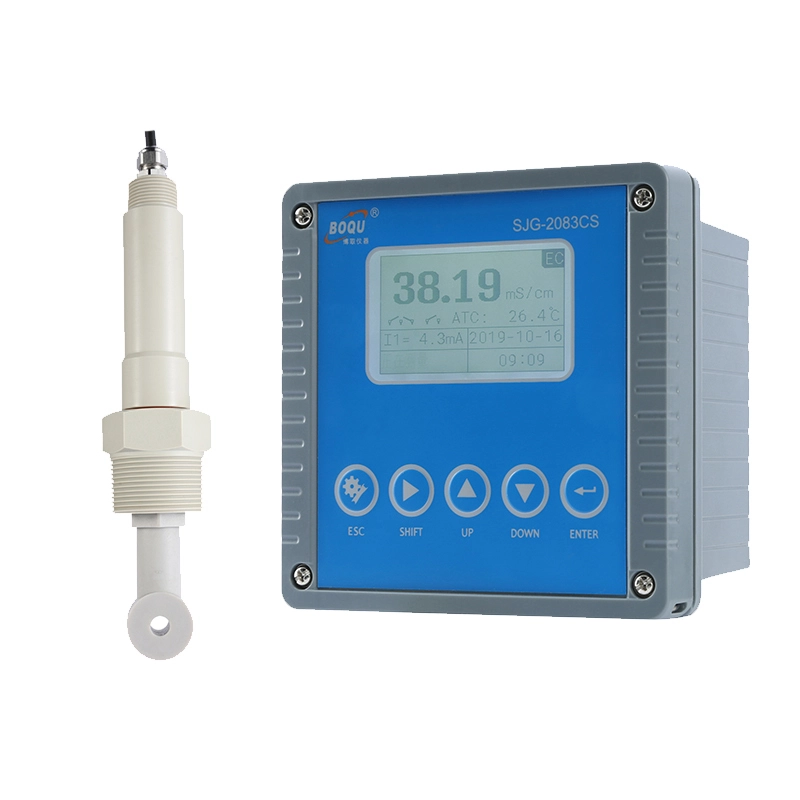

SJG-2083CS Online Sodium Hydroxide (NaOH) Concentration Meter
SJG-2083CS
ONLINE ACID ALKALI CONCENTRATION METER
TECHNICAL PARAMETERS
Product name | SJG-2083CS Online Acid and Alkali Concentration Meter | |
| Principle | Inductive Conductivity Sensor | |
| Range | Conductivity | 0~2000ms/cm |
| TDS | 0mg/L~130000mg/L | |
| Salinity | 0g/L~80g/L(ppt) | |
| NaOH | 0.00%~25.99% ;15.13%~50.00% | |
| Temperature | -40C~150C | |
Accuracy | ±1%FS,±0.5℃ | |
Power | 90 – 260V AC 50;60Hz | |
Communication | RS485 | |
Output | Two ways of 4-20mA | |
Relays | Two relays ,5A;250V AC,5A;30V DC | |
Size | 144×144×104mm | |
Protection | IP65 | |
MAIN FEATURES
inductive conductivity sensor for long working life,few maintenance
Extremely quickly and precision Acid-base concentration sensor.
Standard RS485 modbus,two ways of 4-20mA and two relays for high and low alarm set.
Conductivity,TDS,Salinity,NaCl,HCl,NHO3,NaOH,H2SO4,KOH Concentration and temperature
With data recording function,user easy to check history data and history curve.
90 – 260V AC 50;60Hz for different countries
