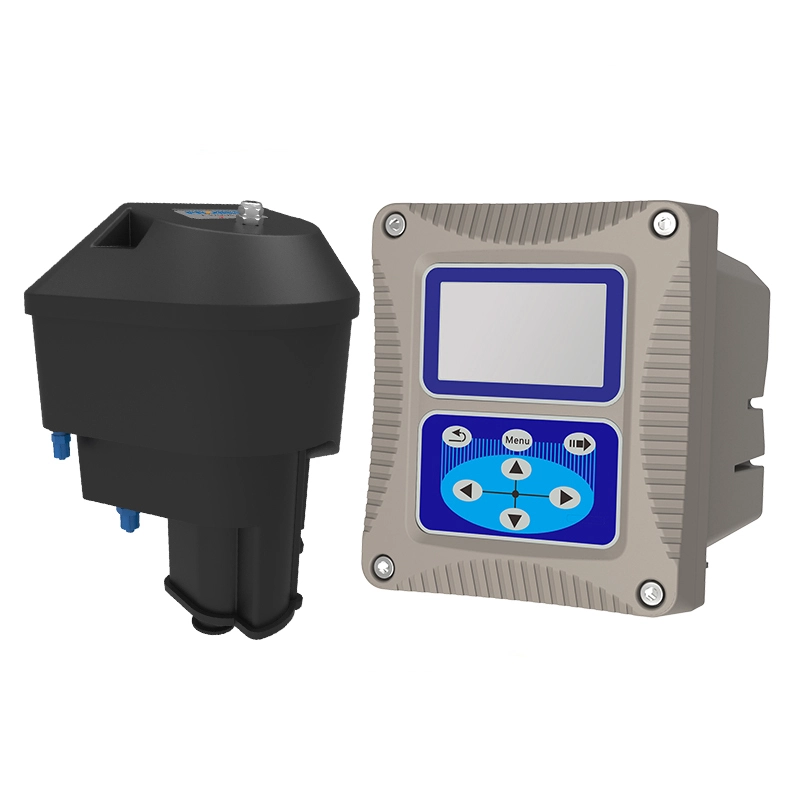

Online Turbidity Meter ZDYG-2088A
ZDYG-2088A INDUSTRIAL TURBIDITY METER
This ZDYG-2088A is special designed for low range turbidity measurement.the parallel light from the light source is directed into the water sample in the sensor by the low-range turbidity sensor and scattered by the suspended particles in the water sample. The scattered light forming a 90-degree angle with the incident light will be received by the silicon photocell receiver which is immersed into the water sample. The turbidity value of the water sample will be calculated according to the relationship between the 90-degree scattered light and the incident beam.It is widely used in such fields as sewage plants, Dringking water plants, water stations, surface water, and industries for inspecting the turbidity.
TECHNICAL INDEXES
| Product | ZDYG-2088A Low Range Turbidity Meter |
Measuring range | 0.01~100NTU |
Accuracy | The deviation of reading in 0.001~40NTU is ±2% or ±0.015NTU, choose the bigger one; and it is ±5% in the range of 40-100NTU. |
Accuracy | ± 1% |
Isolated current output | Two ways of 4~20 mA, the maximum load is 500 ohms |
Power supply | AC:AC220V, 50HZ, 5W ; DC:DC24V |
Communication interface | RS485 Modbus RTU |
Protection grade | IP65/NEMA4X |
Relay | Three-way relay can be set up, and response parameters and response values can be programmed |
Overall dimension | 145*125*162mm L*W*H |
Dimension of the hole | 138x138 mm |
Calibration | Standard Solution Calibration, Water Sample Calibration, Zero Point Calibration |
Cable length | Three-meter standard cable, it is not recommended to extend. |
