Product Overview
1) Product overview
Product Features

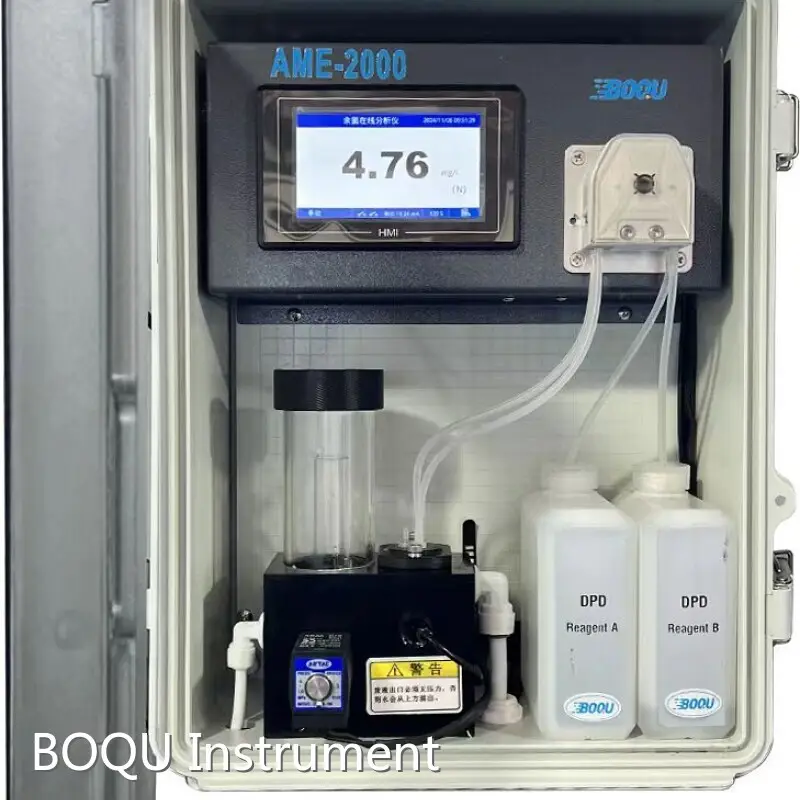

- Product name: BOQU AME-2000 Online Residual Chlorine Analyzer (offered by Shanghai Boqu Instrument Co., Ltd.).
Product Value
- Measuring principle: DPD colorimetry for residual chlorine (reagent automatically dosed).
Product Advantages
- Key specs: measuring range 0–5.00 / 10.00 mg/L; resolution 0.01 mg/L; accuracy ±5% of reading or ±0.03 mg/L; measurement cycle ~2.5 min (configurable 120 s–86400 s).
Application Scenarios
- Outputs & communication: 4–20 mA analog (max 500 Ω), RS485 with Modbus RTU, 2 relay alarm outputs.
- Physical / power: 100–240 VAC, 50/60 Hz; 4.3" color touchscreen; dimensions 330 × 430 × 180 mm; weight ~6.5 kg.
2) Product features
- Reliable national-standard DPD colorimetric method for accurate colorimetric measurement.
- Automatic reagent dosing, automatic measurement and auto-calibration capabilities.
- Touchscreen interface with Chinese/English display and selectable automatic or manual operation.
- Flexible measurement interval and fast analysis period (~2.5 minutes).
- Data storage with U-disk export and viewable historical and calibration records.
- Communication and control: RS485 (Modbus RTU), 4–20 mA output and configurable Hi/Lo relay alarms.
3) Product value
- Continuous online monitoring of residual chlorine improves process control during chlorination/disinfection.
- Ensures drinking water safety and regulatory compliance through accurate, standard-based measurement.
- Saves labor and reduces manual sampling by automating measurement, calibration and data logging.
- Supports integration into plant SCADA/PLC systems for centralized monitoring and rapid response.
- Data export and alarm functions help trace events, support reporting and reduce operational risk.
4) Product advantages
- High measurement stability and accuracy from DPD colorimetric technique and automated reagent handling.
- Fast, configurable response with short analysis cycle and selectable measurement periods.
- Multiple connectivity options (Modbus RS485, 4–20 mA) and alarm relays enable easy system integration.
- User-friendly touchscreen interface and bilingual support for straightforward operation.
- Robust design for field conditions (wide input power range, broad temperature/humidity tolerance) and built-in data storage for operational traceability.
5) Application scenarios
- Real-time monitoring of residual chlorine in drinking water treatment plants and distribution networks.
- Chlorination process control and disinfection monitoring in municipal water systems.
- Industrial process water disinfection control where residual chlorine must be controlled.
- Wastewater disinfection monitoring and regulatory compliance verification.
- Swimming pools, cooling towers or other facilities requiring continuous residual chlorine surveillance.
Additional notes
- Supplier: Shanghai Boqu Instrument Co., Ltd.; company emphasizes engineering support, environmental responsibility and responds to inquiries within ~8 hours.
