BOQU Hach Chlorine Analyzer Supplier
Product Overview
Sure! Here is a summary of the product **BOQU Hach Chlorine Analyzer (Model CL-2059H)** in five points:
Product Features
**Product Overview**
Product Value
The CL-2059H is a high-range free chlorine meter designed for continuous online monitoring of residual chlorine levels up to 500 mg/L. It employs advanced sensor technology and pH compensation without the need for reagents, making it reliable for various disinfection monitoring applications.
Product Advantages
**Product Features**
Application Scenarios
- Measures free residual chlorine from 0.2 to 500 mg/L with temperature and pH compensation (pH 4.5–8.5, temperature -5℃ to 60℃).
- Uses double gold filmless polymerized reference chlorine sensor technology.
- Multi-functional with two measurement channels and outputs including RS485 Modbus, 4-20mA signals, and high/low control relay.
- Intelligent, highly accurate, and environmentally robust design.
- Low power consumption (≤4.5W) and wide operating voltage (85-265VAC).
**Product Value**
The analyzer saves operational costs by eliminating the need for reagents and maintenance associated with conventional chlorine measurement methods. It enhances reliability and accuracy in high-range chlorine monitoring, helping industries maintain safe and regulated disinfection standards without interruptions.
**Product Advantages**
- Industry-leading high concentration monitoring capability (up to 500 mg/L).
- Cost-effective due to reagent-free operation and minimal maintenance.
- Versatile communication outputs enabling easy integration into control systems.
- Robust environmental adaptability ensuring accurate performance in diverse conditions.
- Designed and manufactured with advanced technology by Shanghai Boqu Instrument Co., Ltd., guaranteeing superior quality.
**Application Scenarios**
Ideal for continuous chlorine monitoring in:
- Water treatment plants (residual chlorine and secondary chlorination).
- Industrial process water management.
- Cooling towers and seawater chlorination.
- Food and vegetable washing and container cleaning.
- Animal husbandry and biosecurity disinfection control.
- Paper, pulp chloramination control, and pasteurizer dosing systems.
Let me know if you need this summary in another format or language!

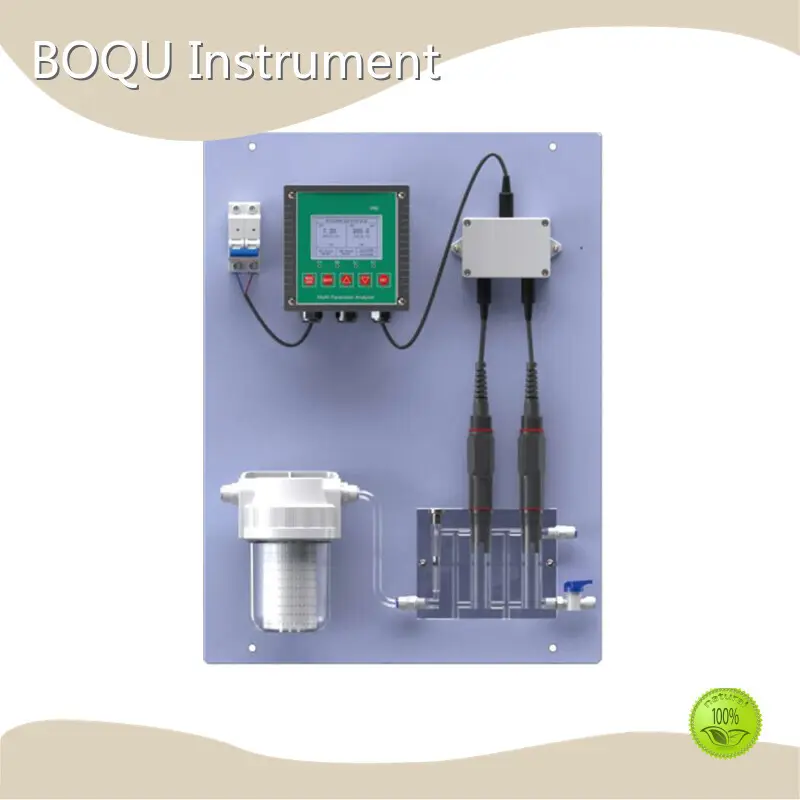

CL-2059H
FREE CHLORINE METER
The CL-2059H Residual(Free) high range chlorine meter is new generation and special for high residual chlorine monitoring and max range up to 500mg/L , it takes online disinfection monitoring to a new level of reliability by offering industry-leading performance. Our high range chlorine monitor also with excellent track record of constant voltage principle , with pH compensation, no need reagent to measure residual chlorine.
Mainly applicaiton of our high range chlorine analyzer: disinfectant applications, animal husbandry, biosecurity, cold chain vegetable cleaning, industrial process water.
TECHNICAL PARAMETERS
Professional high range chlorine monitor for sale
| Instrument | CL-2059H High Concentration Free Chlorine Meter |
Range | Residual Chlorine:0.2~500mg/L (as Cl2) pH:4.5~8.5 Temperature:-5℃~60℃ |
Flow rate | 40~80L/h |
Environment Temperature | 0~60℃ |
Power | 85~265VAC，50/60Hz; ≤ 4.5W |
Communication | Standard RS485 |
| Output | Two ways of 4-20mA |
Switch | High / Low control relay |
Dimension | 450mm×600mm |
| Applicaton | Continuous online monitoring for residual chlorine in any water Water treatment plant residual chlorine Secondary chlorination Distribution monitoring Cooling tower monitoring and control Pasteurizer dosing control Seawater chlorination Bromine monitoring in seawater Food washing and food container washing Chloramination control (MCA) in paper and pulp |
MAIN FEATURES
Features of our professional high range chlorine analyzer
- max residual chlorine monitoring up to 500mg/L
- Two-channel , with pH and temperature compensation;
save cost for user and no need reagent
Adopt double gold filmless polymerized reference residual chlorine sensor;
standard RS485 Modbus and 2 ways of 4-20mA, High/low control relay.
Fully intelligent, multifunctional, high measurement performance, strong environmental adaptability
