Digital Water Hardness Meter Online Ion Meter Wholesale - BOQU-1
Product Overview
- Product overview
Product Features

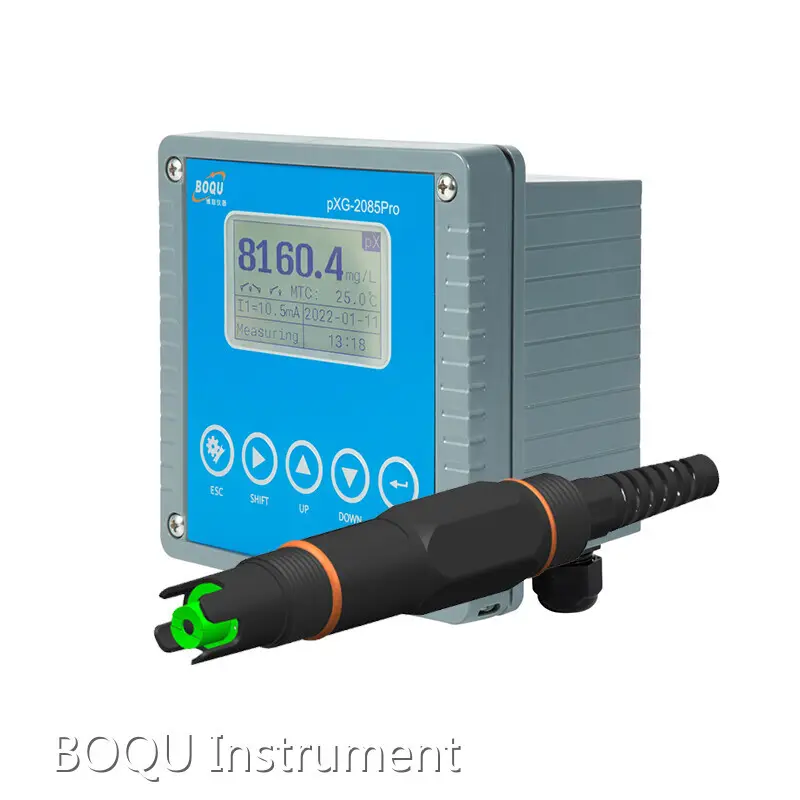

- The BOQU PXG-2085Pro is an online chloride ion meter (ion-selective electrode) designed for continuous, real-time monitoring of chloride (Cl-) concentration and temperature. It is a microcomputer-based controller with a user-friendly interface, local data recording and multiple installation options (panel/wall/pipe).
Product Value
- Product features
Product Advantages
- Measurement range 0.02 ppm to 35,000 ppm with resolution tiers (0.01/0.1/1) and accuracies (±0.01/±0.1/±1 ppm).
Application Scenarios
- Temperature compensation (Pt1000 / NTC10K), temperature range −10 to +130 °C, temp accuracy 0.2 °C.
- Outputs: 2 × 4–20 mA (max load 500 Ω), RS485 Modbus RTU, and 3 relays (High/Low control and Clean) with adjustable delay.
- Local data recording (up to 1,000 records), backlit dot-matrix display, IP65 protection, wide power input (90–260 VAC), anti-electromagnetic interference and surge protection.
- Chloride ISE uses a molded solid chloride membrane with replaceable membrane design and service life >1 year (site-dependent).
- Product value
- Enables reliable, continuous chloride monitoring for process control and regulatory compliance.
- Lowers operating costs through long electrode life and replaceable sensor membranes, reducing maintenance and replacement expenses.
- Improves process automation and decision-making via multiple industry-standard outputs (4–20 mA, relays, Modbus) and onboard data logging.
- Product advantages
- Extremely wide measurement range to cover trace to highly concentrated chloride conditions.
- Robust, field-ready design (IP65, EMC and surge protection) for stable operation in industrial environments.
- Flexible integration with control systems and local automated control (relays + analog/serial outputs).
- Easy maintenance and cost efficiency due to replaceable ISE membrane and long sensor lifetime.
- Versatile power compatibility and multilingual interface options.
- Application scenarios
- Industrial process monitoring and control.
- Wastewater and effluent chloride measurement.
- Drinking water quality monitoring.
- Food and beverage production process control.
- Environmental chloride monitoring and other continuous on-line water quality applications.
