Expert in Water Quality Measurement and Water Treatment Project Since 2007
Industrial Conductivity Meter Online Conductivity Meter Wholesale - BOQU-2
Product Overview
1) Product overview
Product Features

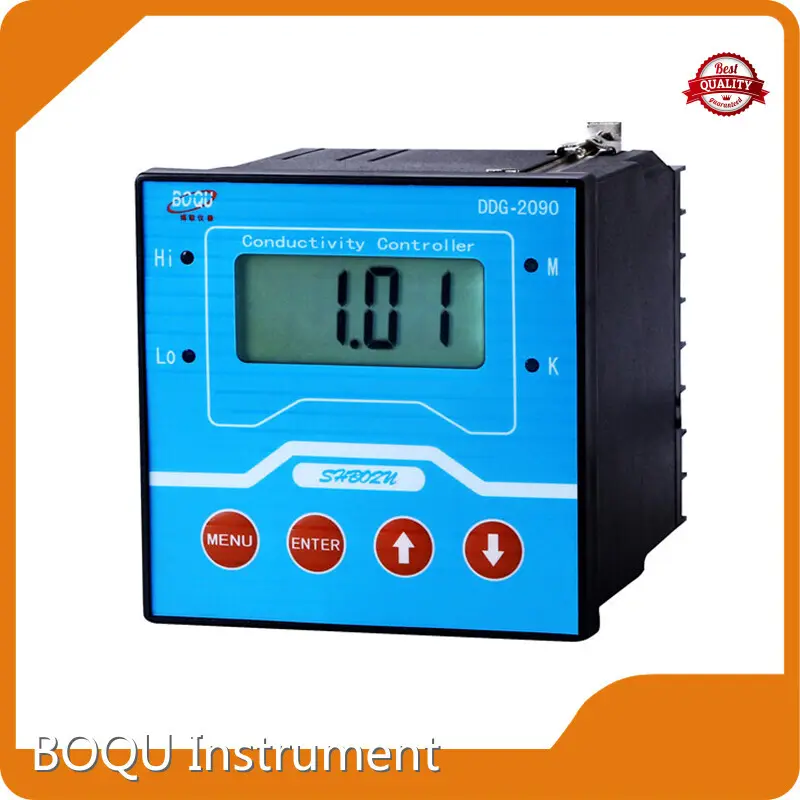

- Model: BOQU DDG-2090 industrial online conductivity meter designed for continuous, panel-mounted monitoring of conductivity/resistivity in liquids.
Product Value
- Panel dimensions: 96 x 96 x 110 mm (cutout 92 x 92 mm). Power: AC 220V ±10%, 50 Hz.
Product Advantages
- Available for wholesale supply with BOQU after‑sales support (24-hour online service).
Application Scenarios
2) Product features
- Wide measurable ranges via selectable electrode constants: 0.1–200 μS/cm (K=0.1), 1–2000 μS/cm (K=1), 10–20,000 μS/cm (K=10), and 0–19.99 MΩ (K=0.01).
- High resolution/accuracy: resolution 0.01 μS/cm (and 0.01 MΩ), accuracy ~0.02 μS/cm (0.01 MΩ); stability ≤0.04 μS/cm per 24 h.
- Automatic temperature compensation (0–99 °C), isolated 4–20 mA output (max load 500 Ω), RS485 communication, LCD with backlight.
- Two relays (alarm/control) with adjustable delay and upper/lower threshold alarms; robust microcomputer-based control.
3) Product value
- Enables accurate, stable real-time monitoring and control of water and process solutions to improve process quality and safety.
- Supports integration into control systems (4–20 mA and RS485), enabling remote monitoring, automated control, and faster response to abnormalities.
- Cost-effective combination of reliable performance, long service life and comprehensive features for industrial applications.
4) Product advantages
- Versatile measurement capability across a very wide conductivity/resistivity range via interchangeable electrode constants.
- Stable, precise measurements with automatic temperature compensation and isolated current output for noise immunity.
- User-friendly: clear LCD with backlight, simple operation, panel-mount form factor for easy installation.
- Backed by BOQU’s R&D and production experience, quality control and 24/7 after-sales support for dependable long-term operation.
5) Application scenarios
- Industrial continuous monitoring in thermal power plants, chemical fertilizer production, metallurgy and environmental protection.
- Process and quality control in pharmaceutical, biochemical, and food industries.
- Municipal and industrial water treatment, running water systems, and any application requiring online conductivity/resistivity measurement and alarm/control.
