Latest Ph Orp Sensor Quality Assurance for Plants
Product Overview
1) Product overview
Product Features

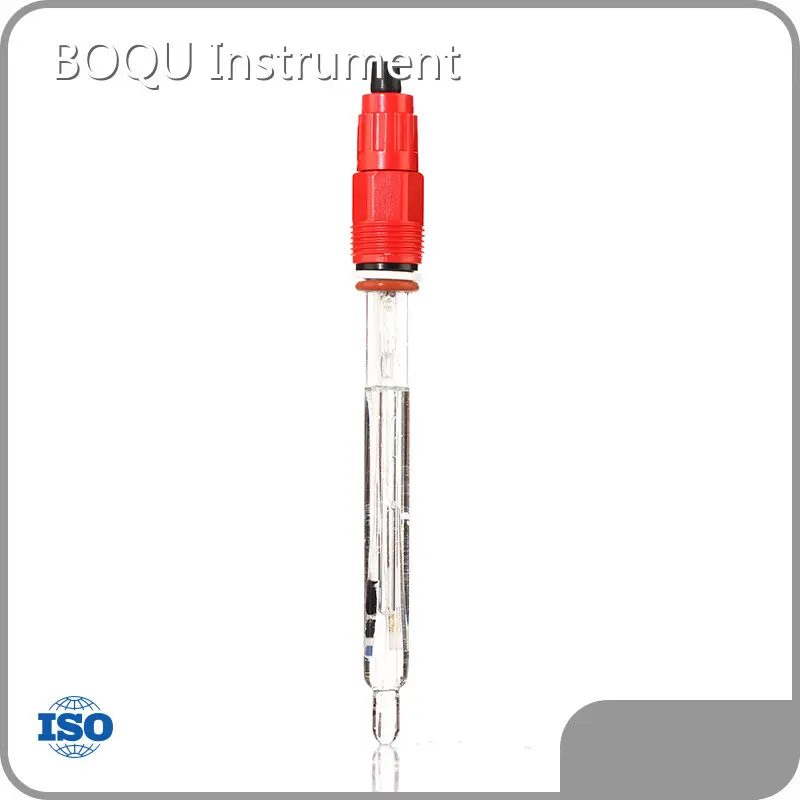

- The PH5806/5M is a high-temperature pH electrode from Shanghai Boqu Instrument Co., Ltd., developed for demanding industrial and aseptic plant environments. It measures pH across 0.0–14.0 with ±0.1 pH accuracy, tolerates up to 130°C and 0.6 MPa (6 bar) pressure, and comes in multiple shaft lengths (12 mm diameter; 120/150/225/325 mm). It is offered as part of Boqu’s pH/ORP sensor family for process monitoring in production plants.
Product Value
2) Product features
Product Advantages
- Hygienic, high-temperature design suitable for CIP (clean‑in‑place) and SIP (sterilize‑in‑place) with direct use at 130°C.
Application Scenarios
- Heat‑resistant gel dielectric and solid dielectric double liquid‑junction construction, with liquid, gel or polymer reference options.
- PT1000 temperature compensation (customizable), leading‑wire cable, and high‑pressure compatibility for tanks and reactors.
- Low maintenance (little or no extra dielectric required) and straightforward electrode replacement.
3) Product value
- Ensures continuous, accurate pH measurement during aggressive temperature and media transitions, reducing process downtime and maintenance interruptions.
- Supports regulatory and sanitary compliance (FDA‑certified sanitary options), making it suitable for pharmaceutical, biotech and food/beverage production lines.
- Offers extended working life and consistent performance in aseptic manufacturing, improving process control and product quality.
4) Product advantages
- Independently developed with proprietary IP; Boqu reports a dedicated high‑temperature laboratory and rigorous quality control.
- Market compatibility and cost efficiency: designed to replace or be interchangeable with major-brand electrodes (e.g., Mettler Toledo, Hamilton).
- Robust construction for high‑temperature, high‑pressure service with minimal upkeep, providing a reliable alternative to competing sensors.
5) Application scenarios
- Fermentation tanks and bioreactors in biotechnology and pharmaceutical plants.
- Food and beverage production lines requiring CIP/SIP and sanitary instrumentation.
- Starch paste processing and other high‑temperature, fast‑change media processes.
- Installation in tanks and reactors where high pressure, high temperature and hygienic compliance are required.
