Product Overview

Note: the supplied product description details the BOQU TOCG-3040 online Total Organic Carbon (TOC) analyzer. The summary below reflects that information and highlights its relevance for irrigation/reuse monitoring (where TOC/C organics are important); if you specifically need a COD meter summary, please provide the COD product text.

Product Features

1) Product overview

Product Value

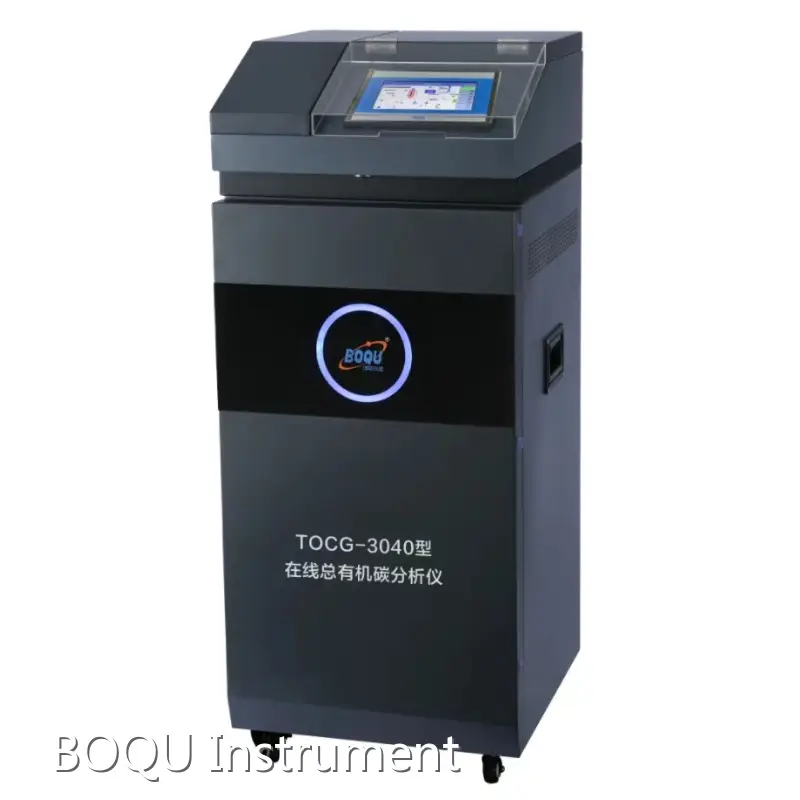

- BOQU TOCG-3040 is an online Total Organic Carbon (TOC) analyzer designed for continuous monitoring of carbon concentrations in water.

Product Advantages

- It uses UV/persulfate oxidation combined with non-dispersive infrared (NDIR) detection to quantify carbon as CO2.

Application Scenarios

- Measurement range: 0.001–100.0 mg/L TOC (detection limit 0.001 mg/L); typical analysis time 3–8 minutes.

- Integrated, compact host with onboard display and software for measurement, calibration and data handling.

2) Product features

- Four measurement modes: TC, TIC, TOC (TC–TIC), and NPOC.

- UV persulfate oxidation with NDIR CO2 detection (highly reflective gold‑plated gas chamber, concentrated IR source, sensitive detector) for ppb-level sensitivity.

- Precision metering pump, double-pass electronic condensation/dehydration, and real-time visible measurement curves.

- Built-in self-monitoring of temperature, pressure and flow; configurable measurement curves.

- Requires sodium persulfate (oxidizer), phosphoric acid (acid reagent), and carrier gas (high‑purity N2 or CO2‑free air).

3) Product value

- Enables sensitive, accurate, continuous organic-carbon monitoring for process control, compliance and product quality assurance.

- Fast, automated analyses reduce manual sampling and lab turnaround time.

- Wide measurement range and multiple modes cover volatile and non-volatile carbon fractions, supporting diverse sample types.

- Useful for water reuse/irrigation screening to protect crops and soil by controlling organic load in reclaimed water.

4) Product advantages

- High sensitivity and accuracy (limit 0.001 mg/L; accuracy ±5% or F.S ±0.1%) with strong repeatability and low drift.

- Robust NDIR hardware (gold-plated chamber, sensitive detector) and precise fluidics (metering pump) for stable, repeatable results.

- Compact, integrated design with dedicated onboard software simplifies installation and operation.

- Real-time curves and multi-parameter self-checking support troubleshooting and reliable continuous operation.

- Backed by manufacturer QC, inspection during production and a customer support team for commissioning and problem resolution.

5) Application scenarios

- Purified water and water-for-injection (WFI) monitoring (pharmaceutical manufacturing and validation).

- Cleaning validation and process monitoring in pharmaceutical and biotech facilities.

- Tap water and surface water quality monitoring.

- Industrial/chemical water streams: cooling water, cleaning water, reclaimed water — including reuse for irrigation and other non-potable applications.

- Laboratory research and process R&D where continuous organic carbon measurement is required.
