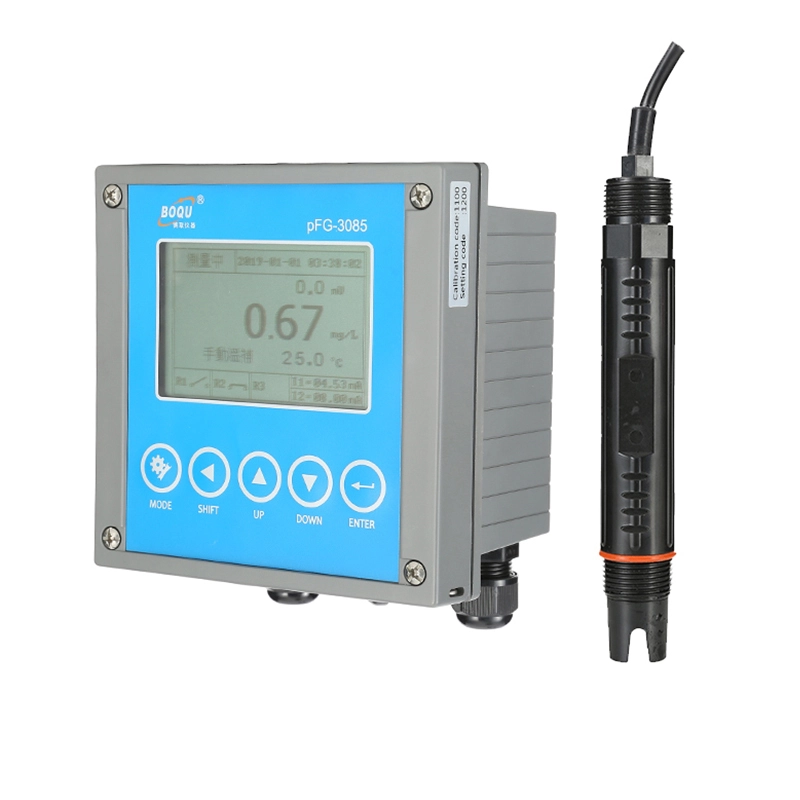

PFG-3085 Online Chloride Ion Meter Analyzer 1
PFG-3085 Online Chloride Ion Meter Analyzer 1

PFG-3085 Online Chloride Ion Meter Analyzer

Professional online chloride analyzer for sale, with more than 10 years of chloride meter manufacturing experience, welcome to visit our factory!

    oops...!

    no product data.

    Go to homepage
    PFG-3085 Online Chloride Ion Meter Analyzer 2
    PFG-3085 Online Chloride Ion Meter Analyzer 3
    PFG-3085 Online Chloride Ion Meter Analyzer 4

    PFG-3085 ONLINE CHLORIDE ION METER

    PFG-3085 Industrial online Ions meter is new latest micro-computer-based high-end instrument. Our online chloride analyzer with characterized by three languages in one, suitable for F-, Cl-, Mg2+, Ca2+, NO3-, NH+ (Fluoride ion, Chloride ion, Chloride, Potassium ion, Nitrate ion, Ammonium ion, Calcium ion, Hardness etc).

    The ion chloride meter has a user-friendly interface, easy use, long working life, and data logging function.it’s widely used for power plants, drinking water, industrial wastewater etc.

    TECHNICAL PARAMETERS

    Products detail of Boqu Instrument chloride meter

    ProductIndustrial Online Chloride Ion Meter

    Functions

    Chloride ion ,Cl-

    Measuring range

    0.00 – 5000 ppm

    Resolution

    0.01(<1ppm), 0.1 (<10ppm), 1(others)

    Accuracy

    ±0.01ppm,±0.1ppm,±1ppm

    mV input range

    0.00-1000.00mV

    Temp. compensation

    Pt 1000/NTC10K

    Temp. range

    -10.0 to +130.0℃

    Temp. compensation range

    -10.0 to +130.0℃

    Temp. resolution

    0.1℃

    Temp. accuracy

    0.2℃

    Ambient temperature range

    0 to +70℃

    Storage temp.

    -20 to +70℃

    Input impedance

    >1012Ω

    Display

    Back light, dot matrix

    ION current output1

    Isolated, 4 to 20mA output , max. load 500Ω

    Temp. current output 2

    Isolated, 4 to 20mA output , max. load 500Ω

    Current output accuracy

    ±0.05 mA

    RS485

    Mod bus RTU protocol

    Baud rate

    9600/19200/38400

    Maximum relay contacts capacity

    5A/250VAC,5A/30VDC

    Cleaning setting

    ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours

    One multi function relay

    clean/period alarm/error alarm

    Relay delay

    0-120 seconds

    Data logging capacity

    500,000

    Language selection

    English/traditional Chinese/simplified Chinese

    Waterproof grade

    IP65

    Power supply

    From 90 to 260 VAC, power consumption < 5 watts

    Installation

    panel/wall/pipe installation

    Weight

    6000 series:0.85Kg/ 800 series:0.55Kg

    MAIN FEATURES

    Main feathers of Boqu Instrument online chloride analyzer

    PFG-3085 Online Chloride Ion Meter Analyzer 5
    The ion instrument are used in industrial measuring of the temperature and ion, such as,Waste water treatment, environmental monitoring, electroplate factory, etc.
    PFG-3085 Online Chloride Ion Meter Analyzer 6
    It can be panel, wall or pipe mounted.
    PFG-3085 Online Chloride Ion Meter Analyzer 7
    The ion meter provides two current outputs. The maximum load is 500 Ohm.
    PFG-3085 Online Chloride Ion Meter Analyzer 8
    It provides 3 relays. It can pass though a maximum of 5 Amps at 250 VAC or 5 Amps at 30VDC
    PFG-3085 Online Chloride Ion Meter Analyzer 9
    It has data logger function and record 500 000 times data.
    PFG-3085 Online Chloride Ion Meter Analyzer 10
    It's suitable for F-,Cl-,Mg2+,Ca2+,NO3-,NH+ etc and it’s automatic to change unit based on different ion sensor.
