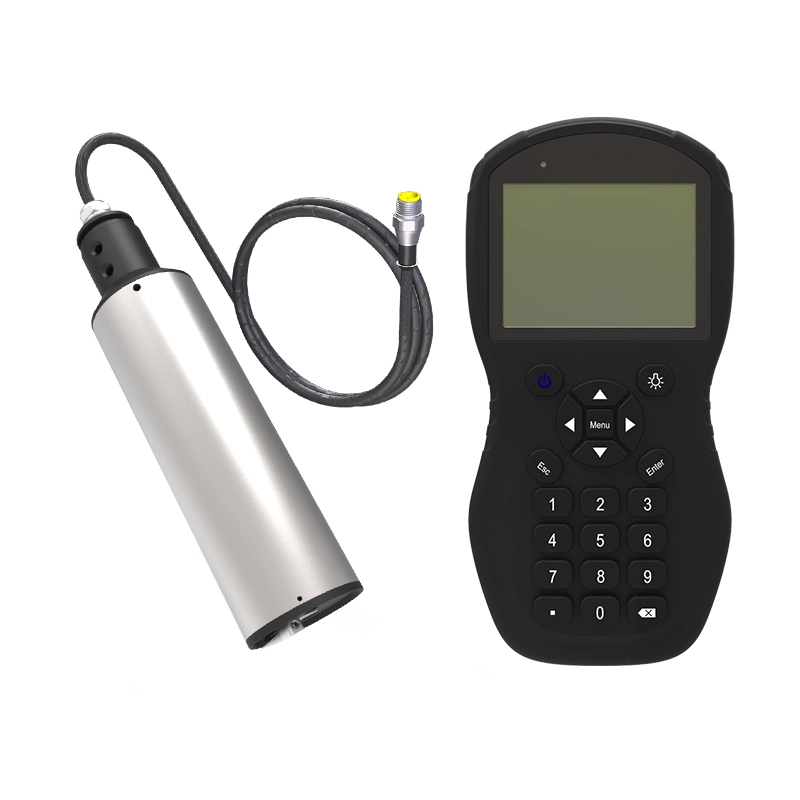

PNTU-1000 Portable Turbidity Meter
PNTU-1000 PORTABLE TURBIDITY METER
The BOQU PNTU-1000 portable turbidity meter consists of a host and a turbidity sensor. The turbidity sensor is based on a combined infrared absorption scatter ray method, and the ISO 7027 method can be used to continuously and accurately determine the liquid turbidity. The turbidity value was determined according to ISO 7027 infrared double scattering light technology without chromatic influence.
Main features of Portable Turbidity Meter
1)Portable host IP66 protection level,IP68 for turbidity sensor.
2)Advanced design with rubber washers for hand-held operation, easy to grasp in wet conditions.
3)Factory calibration, no calibration required in one year, can be calibrated on site.
4)Digital sensor, easy to use and fast in the field, and plug and play with portable host.
5)With USB interface, it can charge the built-in battery and export data through USB interface.
TECHNICAL PARAMETERS
Product | PNTU-1000 Portabale Turbidity Meter | |
Turbidity range | 0.1-1000NTU | |
Resolution | 0.1 NTU | |
Accuracy | ±5% or 0.3NTU | |
Calibration | Standard calibration, water sample calibration | |
| Sensor material | SUS316L | |
| Housing material | ABS+PC | |
| Operating temperature | 1 to 45 ° C | |
| Protection | Portable host of turbidity instruemnt :IP66; Turbidity sensor sensor IP68 | |
Cable | 3 meter(it can be extended) | |
MAIN FEATURES
