Product Overview

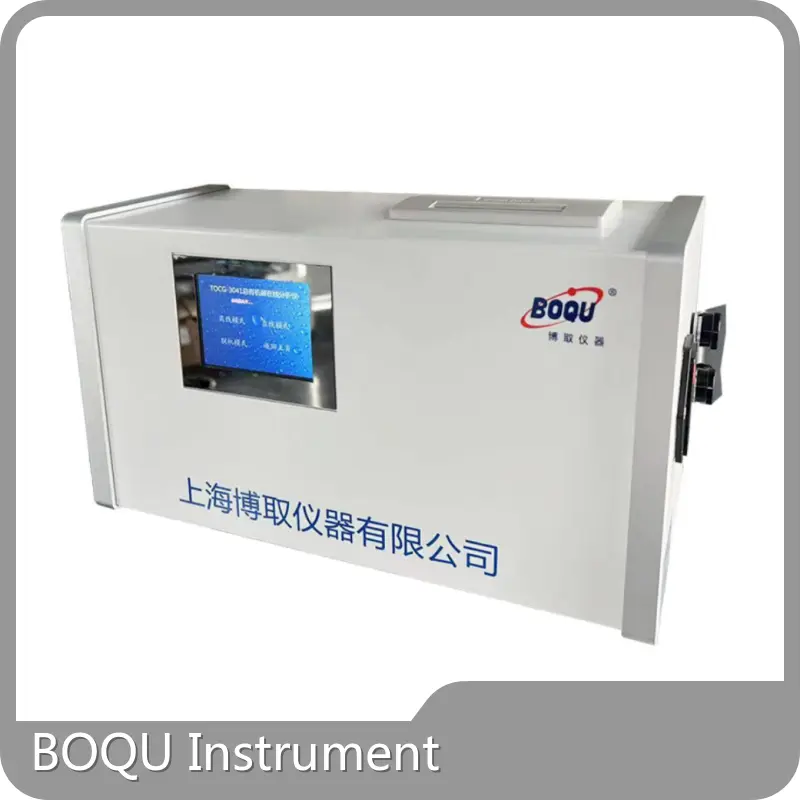

- The detailed description is for the BOQU TOCG-3041 Online Total Organic Carbon (TOC) Analyzer — an online instrument for continuous TOC monitoring in water.

- Measuring range: 0.1 µg/L to 1500.0 µg/L with 0.1 µg/L resolution; designed for high sensitivity, stability and fast analysis.

- Compact host (approx. 30×20×18 cm), 220 V power supply, and built for continuous industrial use with automated sampling by peristaltic pump.

Key product features

- UV oxidation + conductivity-difference detection: dual UV lamps oxidize organics to CO2, and the TOC is calculated from conductivity change (G2–G1).

- High performance: accuracy ≤ ±5%, repeatability ≤ 3%, minimum analysis interval 1 minute, response time ≤ 15 minutes.

- User-friendly interface: touchscreen, visible real-time detection curve, large data storage and day-based query, built-in dot-matrix printer.

- Low-maintenance: no carrier gas or chemical reagents required; UV lamp life countdown and easy replacement; consumables list provided (UV lamp ~5000 h, pump tube ~1 year).

- Process integration and control: alarm output for exceedance, external 4–20 mA output, optional automatic calibration and system suitability test interface.

Product Features

Product Value

- Real-time, high-sensitivity TOC monitoring enables tighter process control and regulatory/compliance assurance (critical for ultrapure and pharmaceutical water systems).

- Reduced operating cost and simpler upkeep due to reagent-free operation and straightforward consumables.

- Better traceability and quality control from onboard data storage, printable records, and automatic calibration options.

- Faster problem detection and response through alarms and continuous monitoring, minimizing downtime and protecting downstream processes.

Product Advantages

(differentiators)

- Wide detection range with low detection limit and stable performance tailored for demanding industrial applications.

- Intuitive operation (touchscreen, visible detection curve, separate system suitability test) that simplifies routine use and validation.

- Flexible integration: standard 4–20 mA output and alarm signals for plant control systems.

- Backed by BOQU’s manufacturing experience, full industrial chain, strong after-sales service capability, and competitive pricing.

Typical application scenarios

- Online TOC monitoring of water systems in the pharmaceutical industry (purified water, WFI, process water).

- Ultrapure water preparation and wafer-processing water monitoring in semiconductor manufacturing.

- Deionized water preparation and condensate/boiler water monitoring in power plants.

- Any industrial or laboratory site requiring continuous, accurate TOC control for product quality, safety, or regulatory compliance.
